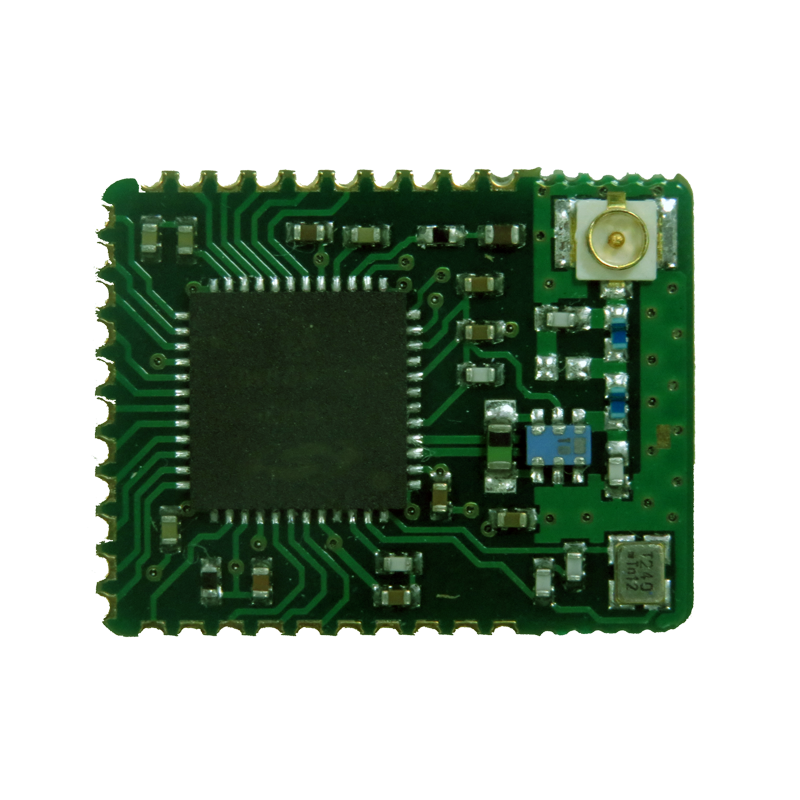

KK1001 Zigbee module
Zigbee module, 2.4GHz wirelss module
PDF download
Product related parameters
Zigbee module
Product:
KK1001Model
19.5*15*2.6mmSize:
8 dBm Transmitting Power:
Zigbee 3.0Communication Protocol:
1.1 Introduction
KK1001/1002 is small, high sensitivity and low power Zigbee module, it complies with IEEE 802.15.4, which can support Zigbee Light Link, Zigbee HA, and Zigbee3.0 protocol.
This module adopts chip of EM3585-RTR from Silicon Labs, it has 31 stamp holes, 23 pcs of GPIO port, and support SWD & JTAG programming way. It has ceramic antenna, comply with FCC, CE and ROHS.
1.2 Features：
● Size: 19.5*15*2.6mm
● High RX sensitivity: -94 dBm
● TX power: 8 dBm
● Low power consumption:
Sleep mode: 0.6µA
RX mode: 10mA
TX mode: 20mA(@3dBm)
● Support writing MAC address to Flash
● Comply with IEEE 802.15.4
● Free 2.4G ISM band
● Support USART Bootloader and AT command, support transparent transmitting mode.
● Support Zigbee Light Link, Zigbee3.0, Zigbee HA.
1.3 Application
Main Application | Devices |
Smart Security | Door lock, gas detector, CO detector, door/window sensor, PIR motion sensor, water leakage sensor, SOS button, siren. |
Smart Lighting | Street light, bulb, RGB light, LED belt, downlight, spotlight. |
Smart switch | Touch switch panel, 86 box panel, scenario switch, curtain switch, dimmer light switch. |
Smart environment monitor | Temperature & humidity sensor, PM2.5 sensor. |
Smart power control | Smart plug, wall socket, plug with calculator. |
Smart control | IR convertor, remote controller |
Smart industry | ZigBee to RS485/RS422/RS232/LAN/KNX |
Other | AMI/AMR, machine monitor, botany monitor system. |
