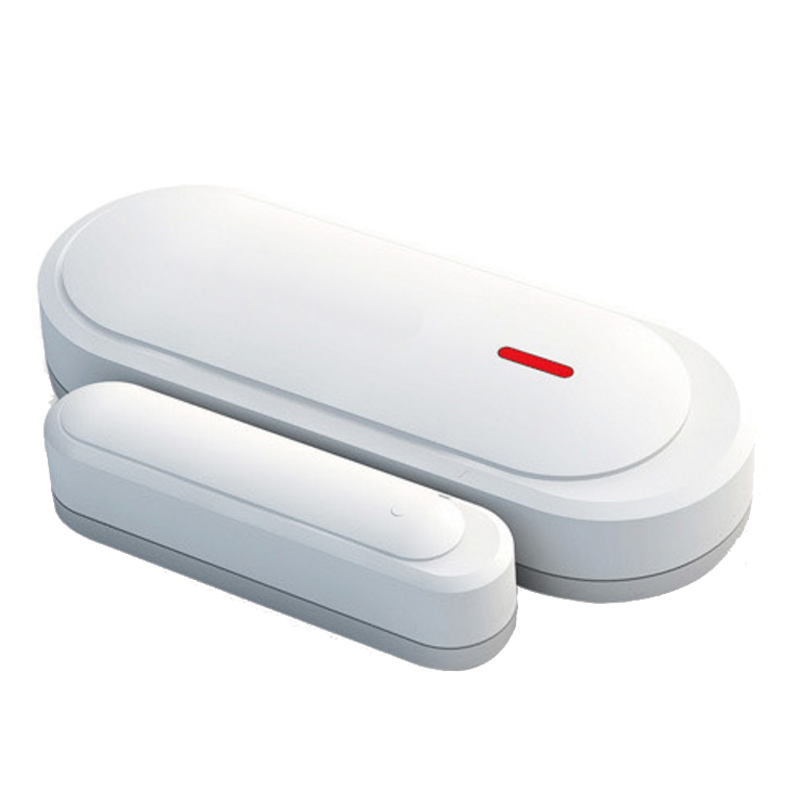

KK2001 Door/Window Sensor
smart door/window sensor, zigbee door/window sensor
PDF download
Product related parameters
Door/window Sensor
Product:
KK2001Model
DefaultSize:
Zigbee 3.0Communication Protocol:
1. Introduction
This wirelss magnetic switch adopts magnetic control theory, which is used for doors, windows and other places. It transmits site alarm or status to control panel by wireless way.
2. Specification
Operating Voltage | DC3.0V |
Operating Current | Static current: ≤7uA |
Working current: ≤25mA | |
Low-voltage Alarm | 2.5V±0.1V |
Active gap | ≥14mm |
Operating Temperature | -10℃~+55℃ |
Installation Mode | Affix to door or frame by screws |
Transmitting Power | ≤13dBm |
Wireless Frequency | 433MHz/868MHz/Zigbee2.4GHz |
Battery Life | >1year |
