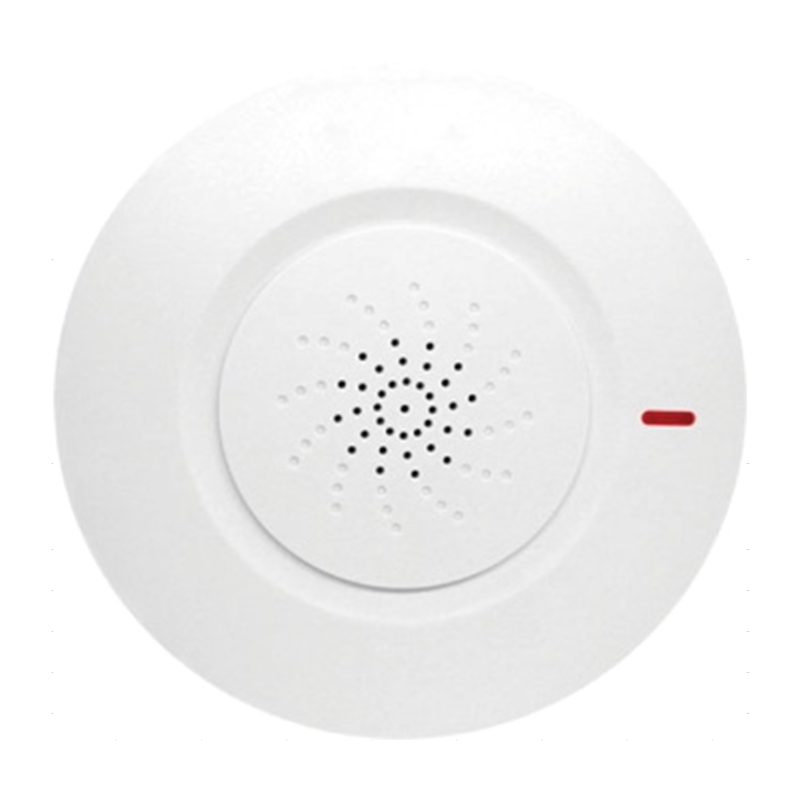

KK2031 Smoke Detector
Zigbee Smart Smoke Detector
Product related parameters
Smoke DetectorProduct:
KK2031Model
DefaultSize:
Zigbee 3.0Communication Protocol:
1. Introduction
Smoke detector is an independent photoelectric smoke detector that suits for home usage. The detector will give alarm signal after detected smoke when fire occurs. Photoelectric Smoke Detector runs by detecting the smoke particles. With special structure design, photoelectric signal processing technique, it has function of dust proof, anti little fly and anti light interference, especially for detecting the visible smoke caused by hidden or bright fire. It is widely used in house, shop, hotel and storage etc.
2. Specification
Work voltage | DC9V /3V |
Static current | ≤10uA |
Alarm current | ≤100mA |
Operating condition | -10℃~50℃ |
Relative humidity | ≤95%RH |
Mounting Method | Ceiling |
Detecting Range | 20m² |
Indicator LED flashing rate | Flash per 40 seconds |
Alarm type | Strobe and siren |
Sensor type | Infrared photoelectric diode |
Alarm sound | >80dB (3m) |
Dimension | Ф102mm×42mm |
Executive standards | GB20517-2006 |
Radio frequency | 433MHz/868MHz/MacBee/ZigBee/Lora |
Transmitting distance | 100m/100m/100m/100m/2000m (in the open area) |
