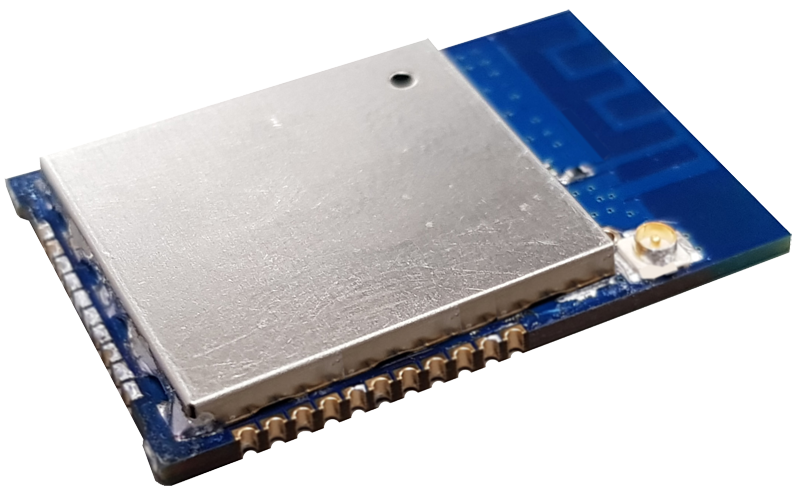

Wireless Module REX3SP
Zigbee module, 2.4GHz wirelss module
PDF download
Product related parameters
Zigbee module
Product:
REX3SPModel
31.60*20.70*3.9mmSize:
20 dBm Transmitting Power:
Zigbee ProCommunication Protocol:
1.1 Introduction
REX3SP is small, high sensitivity and low power Zigbee module, it complies with IEEE 802.15.4, which can support Zigbee Light Link, Zigbee HA, and Zigbee Pro protocol.
This module adopts chip of EM357, it has 32 stamp holes, 24 pcs of GPIO port, and support SWD & JTAG programming way. It has ceramic antenna, comply with FCC, CE and ROHS.
1.2 Features：
● Size: 31.60*20.70*3.9mm
● High RX sensitivity: -99 dBm
● TX power: 20 dBm
● Low power consumption:
Sleep mode: <5µA
RX mode: 30mA
TX mode: 180mA(@20dBm)
● Support writing MAC address to Flash
● Comply with IEEE 802.15.4
● Free 2.4G ISM band
● Support USART Bootloader and AT command, support transparent transmitting mode.
● Support Zigbee Light Link, Zigbee Pro, Zigbee HA.
1.3 Application
Main Application | Devices |
Smart Security | Door lock, gas detector, CO detector, door/window sensor, PIR motion sensor, water leakage sensor, SOS button, siren. |
Smart Lighting | Street light, bulb, RGB light, LED belt, downlight, spotlight. |
Smart switch | Touch switch panel, 86 box panel, scenario switch, curtain switch, dimmer light switch. |
Smart environment monitor | Temperature & humidity sensor, PM2.5 sensor. |
Smart power control | Smart plug, wall socket, plug with calculator. |
Smart control | IR convertor, remote controller |
Smart industry | ZigBee to RS485/RS422/RS232/LAN/KNX |
Other | AMI/AMR, machine monitor, botany monitor system. |
